ASTM E1417/E1417M

$44.00

Standard Practice for Liquid Penetrant Testing

2021 Edition

Includes all amendments and changes through Editorial Change 1, December 2021

Published by ASTM International, 09/01/2021

PDF

All of our standards are only available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.

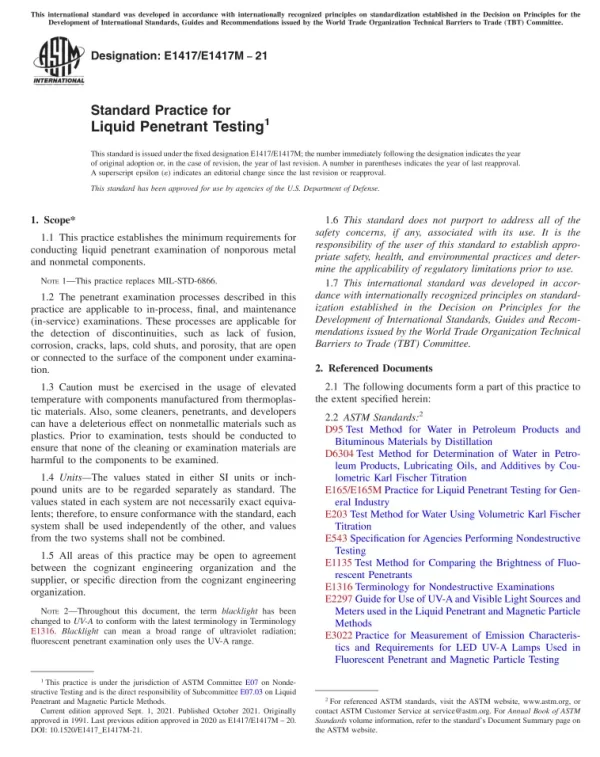

ASTM E1417/E1417M, 2021 Edition – Standard Practice for Liquid Penetrant Testing

practice establishes the minimum requirements for conducting liquid penetrant examination of nonporous metal and nonmetal components.

NOTE 1—This practice replaces MIL-STD-6866.

The penetrant examination processes described in this practice are applicable to in-process, final, and maintenance (in-service) examinations. These processes are applicable for the detection of discontinuities, such as lack of fusion, corrosion, cracks, laps, cold shuts, and porosity, that are open or connected to the surface of the component under examination.

Caution must be exercised in the usage of elevated temperature with components manufactured from thermoplastic materials. Also, some cleaners, penetrants, and developers can have a deleterious effect on nonmetallic materials such as plastics. Prior to examination, tests should be conducted to ensure that none of the cleaning or examination materials are harmful to the components to be examined.

Units—The values stated in either SI units or inchpound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.

All areas of this practice may be open to agreement between the cognizant engineering organization and the supplier, or specific direction from the cognizant engineering organization.

NOTE 2—Throughout this document, the term blacklight has been changed to UV-A to conform with the latest terminology in Terminology E1316. Blacklight can mean a broad range of ultraviolet radiation; fluorescent penetrant examination only uses the UV-A range.

This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Product Information:

Revision 2021 Edition
Document Type PDF
Document Language English
Pages 12
Publisher ASTM International (ASTM)
Status Current

ASTM Volume

03.03: Nondestructive Testing (I): B594 – E2373

Volumes 03.03 and 03.04 provide standards on nondestructive testing of engineering materials, structures and assemblies to detect flaws and characterize the properties of materials. NDT methods cover: Reference Radiological Images, Radiology (Neutron, X, Gamma), Digital Imaging, Acoustic Emission, Liquid Penetrant and Magnetic Particle, Electromagnetic, Leak Testing, and Ultrasonic.
