SAE J514

$79.00

Hydraulic Tube Fittings

2012 Edition

Published by SAE International, 01/06/2012

PDF

All of our standards are available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.

Printable

At any time, you are permitted to make printed copies for your and your members' reference use.

Description

SAE J514, 2012 Edition – Hydraulic Tube Fittings

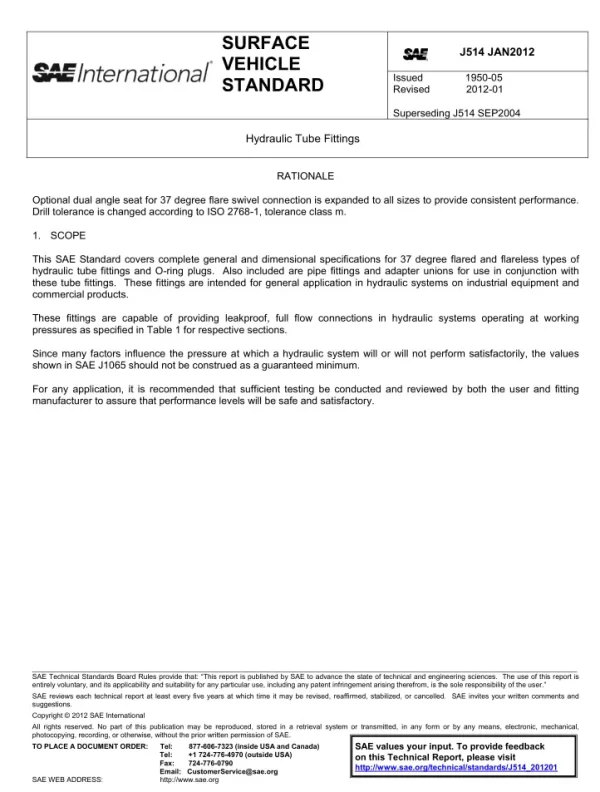

SAE J514 covers complete general and dimensional specifications for 37 degree flared and flareless types of hydraulic tube fittings and O-ring plugs. Also included are pipe fittings and adapter unions for use in conjunction with these tube fittings. These fittings are intended for general application in hydraulic systems on industrial equipment and commercial products.

These fittings are capable of providing leakproof, full flow connections in hydraulic systems operating at working pressures as specified in Table 1 for respective sections.

Since many factors influence the pressure at which a hydraulic system will or will not perform satisfactorily, the values shown in SAE J1065 should not be construed as a guaranteed minimum.

For any application, it is recommended that sufficient testing be conducted and reviewed by both the user and fitting manufacturer to assure that performance levels will be safe and satisfactory.

The standard is divided into six sections as follows:

Section 1 – 37 Degree Flare Tube Fittings

Section 2 – Flareless Tube Fittings

Section 3 – O-ring Plugs (for O-ring Ports see SAE J1926)

Section 4 – Hydraulic Pipe Fittings (formerly SAE J926)

Section 5 – Adapter Unions (formerly in SAE J516)

Section 6 – Tables for Calculating Dimensions on Special Sizes

General Product Information:

Revision 2012 Edition
Document Type PDF
Document Language English
Pages 54
Publisher SAE International (SAE)
Status Current
