Check Valves: Flanged, Lug, Wafer, and Butt-welding

 9th Edition

Published by American Petroleum Institute, 02/01/2022


All of our standards are available in PDF (Portable Document Format), an electronic, downloadable format.

Multi-User Access

After purchasing, you have the ability to assign each license to a specific user.


At any time, you are permitted to make printed copies for your and your members' reference use.

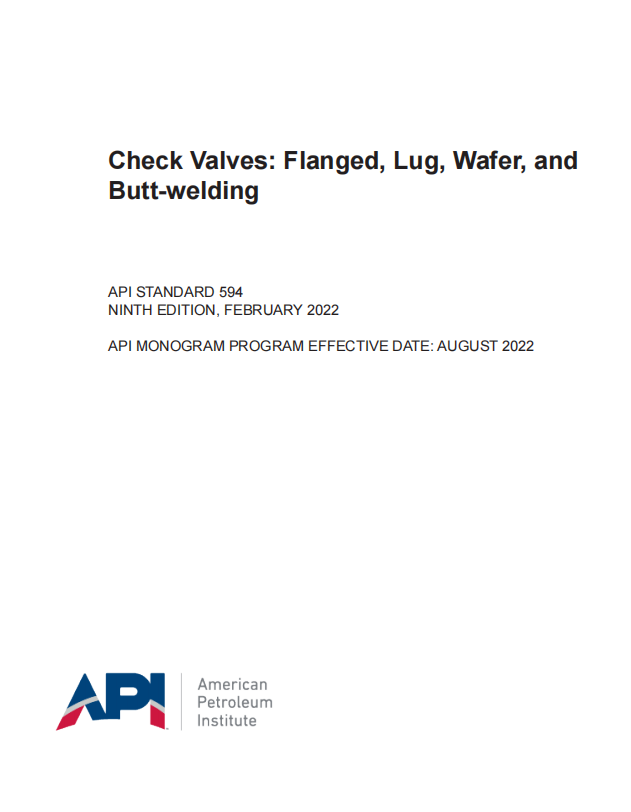

API 594, February 2022 – Check Valves: Flanged, Lug, Wafer, and Butt-welding

API STD 594 covers the design, materials, face-to-face dimensions, pressure-temperature ratings, inspection, examination, and testing requirements for two types of check valves.

Type “A” check valves have short face-to-face dimensions per this standard.

— The body pattern may be wafer, wafer with lugs, or double flanged.

— The obturator may be single or dual plate, swing disc, or pivoting disc.

— Body materials include gray and ductile irons, and materials included in ASME B16.34.

— See typical illustrations in Annex C, Figures C.1, C.2, C.3, C.4, and C.5.

Type “B” check valves are long pattern or short pattern with face-to-face/end-to-end dimensions per ASME B16.10.

— The body may be flanged or have butt-welding ends.

— The obturator may be swing disc or pivoting disc.

— Body materials are included in ASME B16.34.

— See typical illustrations in Annex C, Figure C.5.

Other types of check valves, such as axial disc or body/stem guided disc (center spring type) valves, nozzle-type check valves, or lift-type check valves, are not included in this standard.

This standard covers valves of the nominal pipe sizes DN:

— 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, and 1200

corresponding to nominal pipe sizes NPS:

— 2, 2½, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, and 48.

Pressure class designations include:

— 150, 300, 600, 900, 1500, and 2500 per ASME B16.34;

— 125 and 250 per ASME B16.1;

— 150 and 300 per ASME B16.42.

Information to be specified by the purchaser is shown in Annex B.

The standard nomenclature for valve parts are identified in Figures C.1 through C.5 in Annex C. These figures show typical designs only and are not to be construed as precluding other available designs that conform to the requirements of this standard.

The construction of a valve is acceptable only if it conforms to this standard in all respects.

This edition of API 594 states values in both metric (SI) and U.S. Customary units of measurement. These systems of units are to be regarded separately. The values stated in each system are not exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems constitutes nonconformance with this standard.

General Product Information:

Revision 9th Edition
Document Type PDF
Pages 33
Document Language English
Publisher American Petroleum Institute (API)
Status Current
